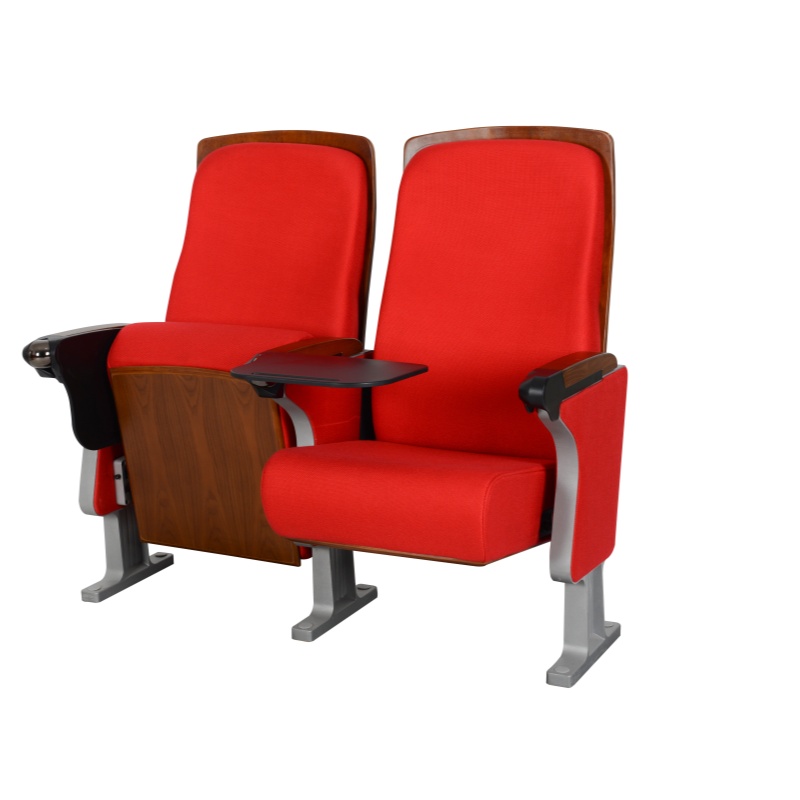

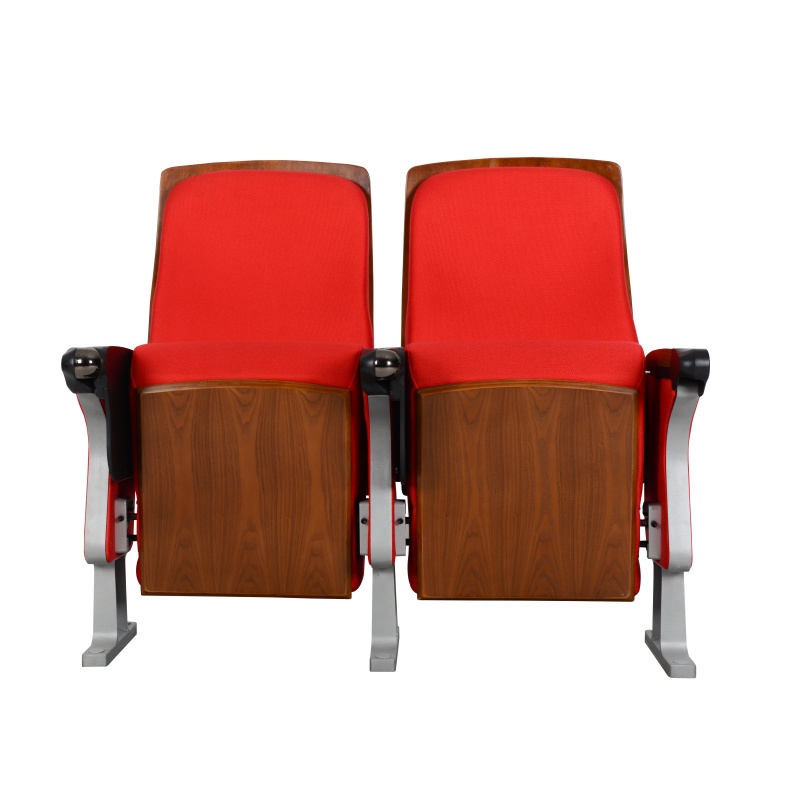

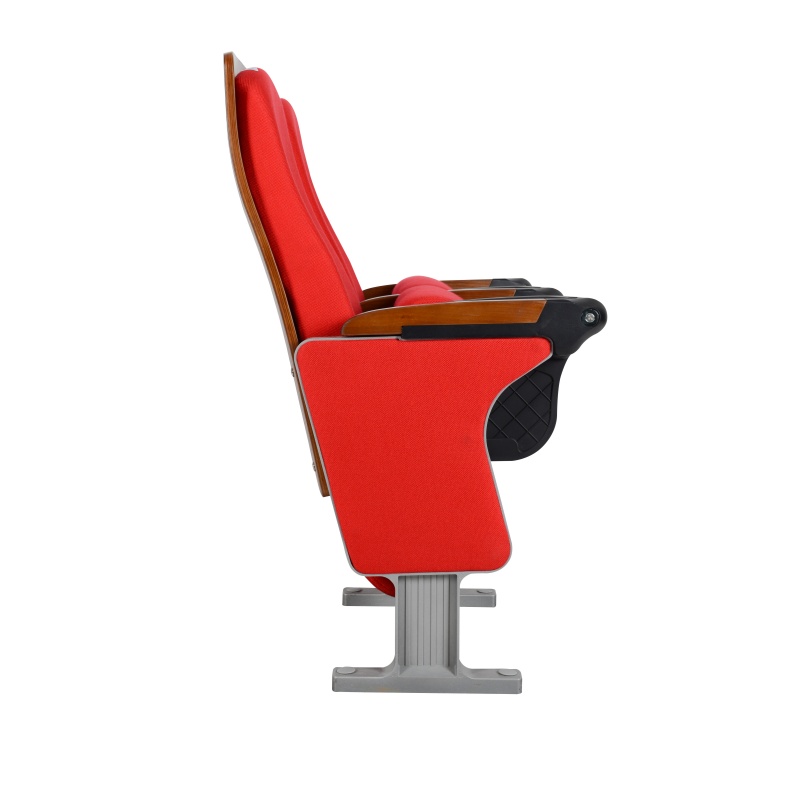

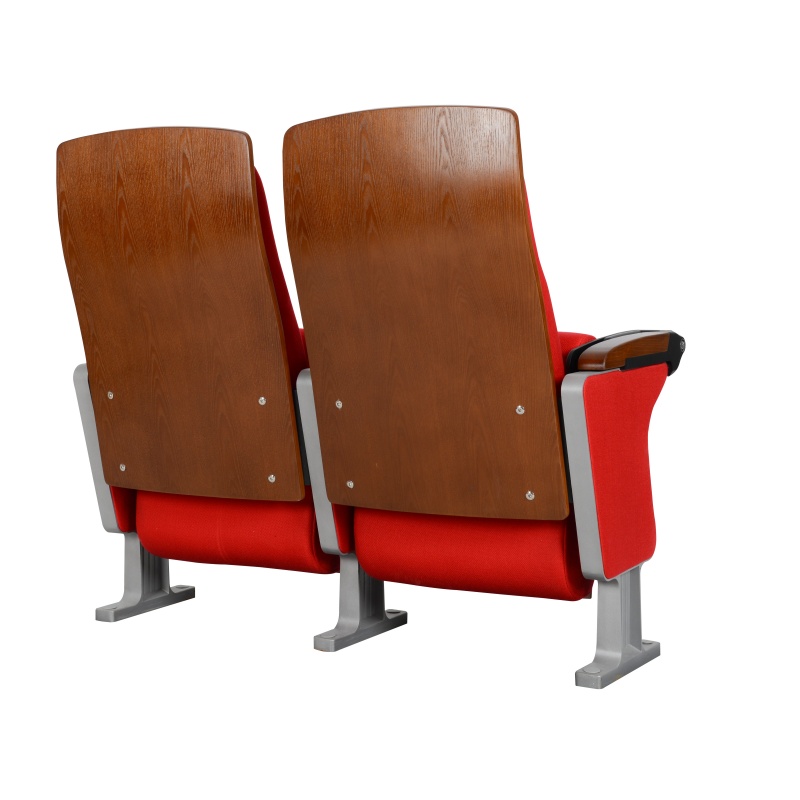

Contemporary Modular Auditorium UA-624
UA-624 is a streamlined, space-saving floor-mounted theater chair with a modular linked design. It features high-strength die-cast aluminum alloy legs for sturdiness and a modern aesthetic, paired with an eversion writing board for convenient use. The chair combines ergonomic comfort and robust durability, maximizing your venue’s seating capacity while offering customizable fabric and wood finishes to match your design preferences.
Back & Seat Pan: E1-grade eco-friendly plywood (600–650kg/m³ density), B2/CA117 fire-resistant veneer, moisture-proof eco-friendly finish.
Foam: Grade A cold-molded high-resilience foam, maintains shape after long-term use, optional CA117/BS5852 fire certification
Tip-Up Seat: combination of spring and damping provides the lifetime quiet seat return.
Upholstery: 100% polyester fabric, abrasion resistance >50,000 cycles, optional CA117/BS5852 fire certification
Leg & Armrest: High-strength die-cast aluminum alloy legs, powder-coated with glossy finish. E1 plywood with solid wood arm caps for stability
Structural Safety: Complies with EN12727:2016 (Level 4) and BIFMA 5.4:2020 international standards
Custom Embroidery Logo
Custom Veneer & Wood Finishes
Writing Tablet
Custom Row & Seat Number
Full Upholstery Option
LED Aisle Lighting
Cup Holder

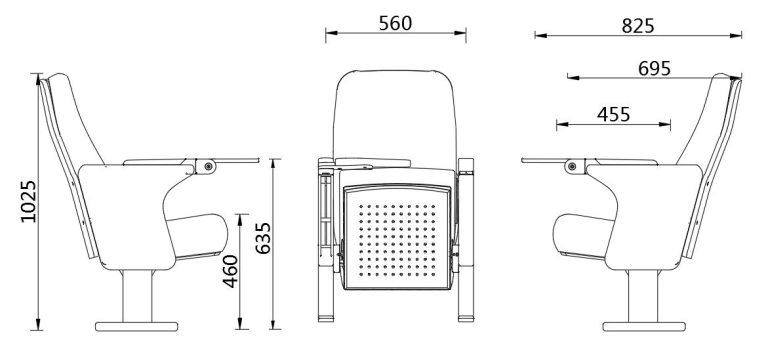

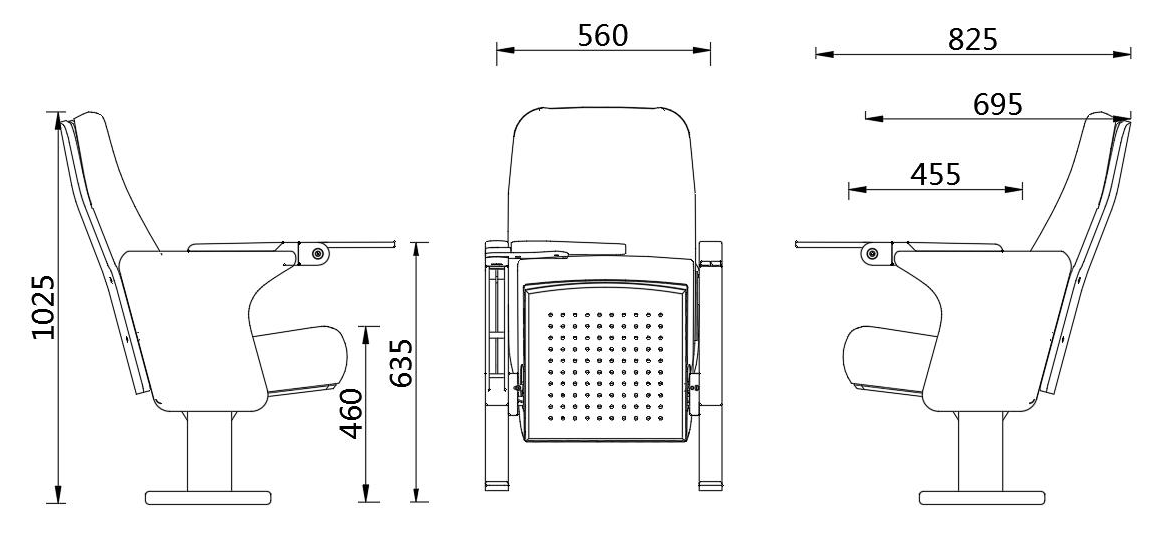

| Description | MM | INCH |
|---|---|---|
| C/C (armrest center to center) | 560 | 22.0 |
| Arm width | 50 | 2.0 |
| Inner seat depth | 455 | 17.7 |
| Overall depth with seat open | 695 | 17.9 |
| Floor-to-seat height | 460 | 18.1 |
| Floor-to-writing tablet height | 635 | 25 |
| Overall back height | 1025 | 40.3 |
