Flip-Up Tablet Auditorium UA-6176

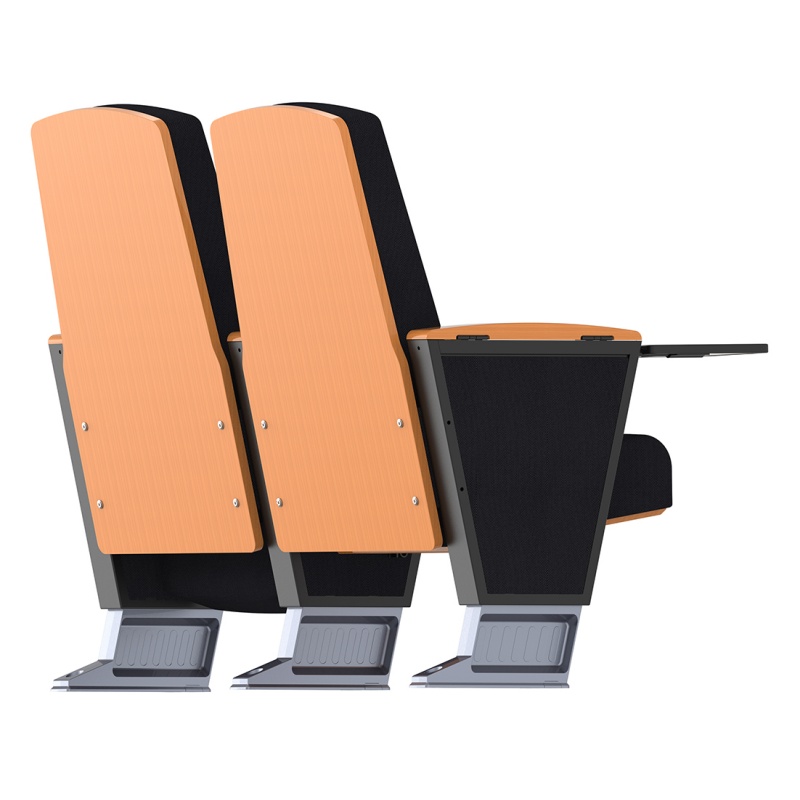

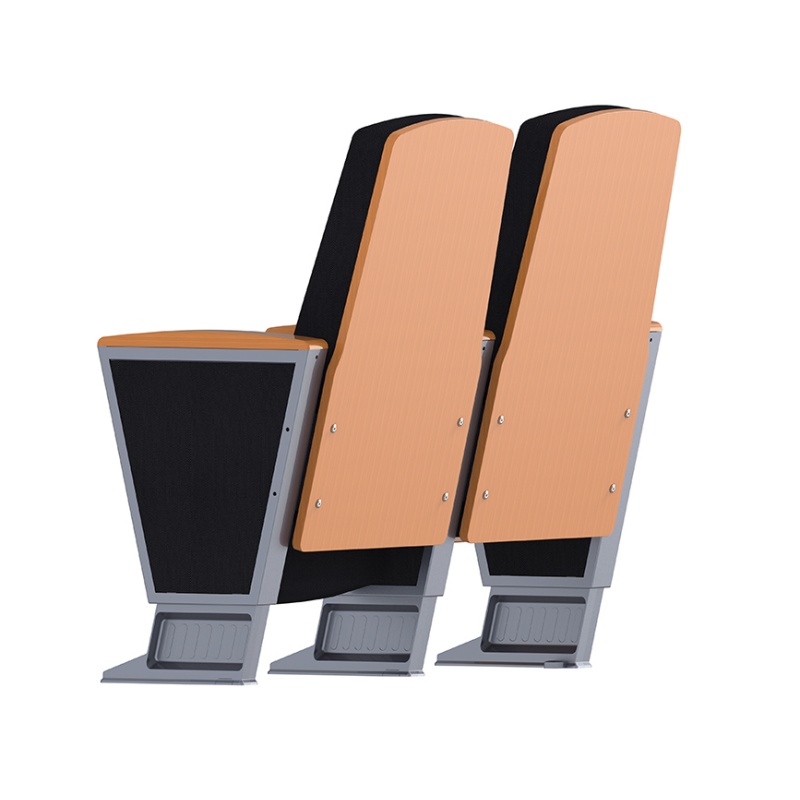

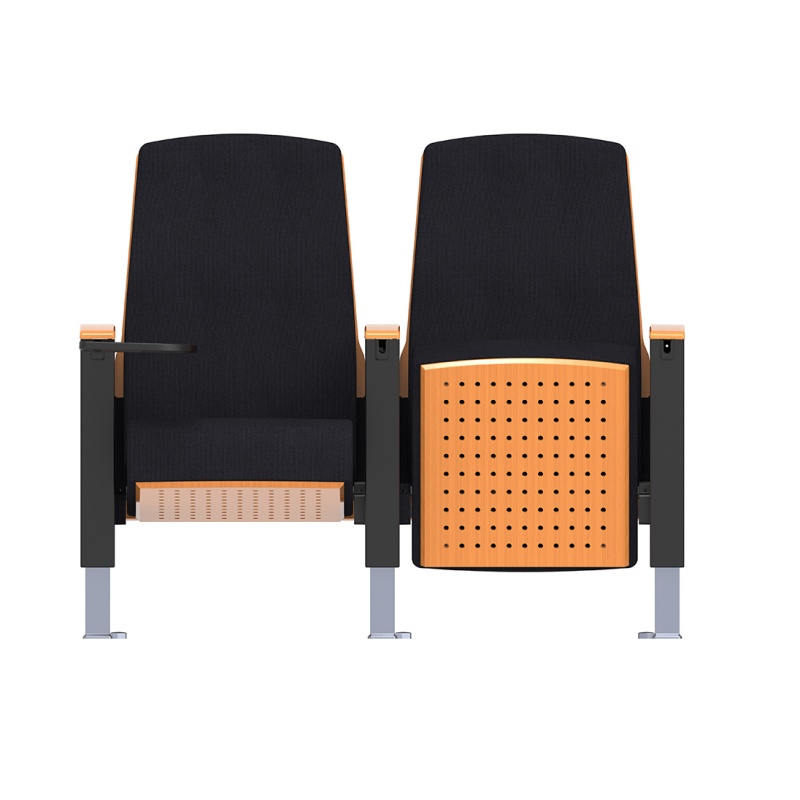

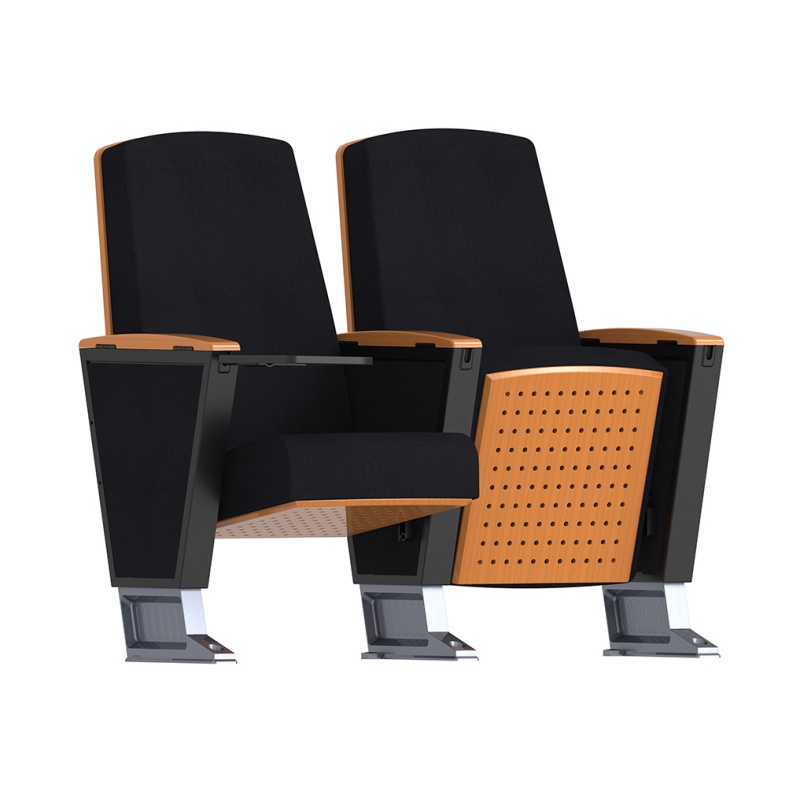

UA-6176 is a space-efficient, linked theater chair engineered for durability and functionality. It features high-strength die-cast aluminum legs, perforated wood side panels for acoustic benefits, and a convenient flip-up writing table. The ergonomic seat and backrest provide optimal support, with customizable fabric and wood options to meet diverse venue requirements.
Back & Seat Pan: E1-grade eco-friendly plywood (600–650kg/m³ density), B2/CA117 fire-resistant veneer, moisture-proof eco-friendly finish.
Foam: Grade A cold-molded high-resilience foam, maintains shape after long-term use, optional CA117/BS5852 fire certification
Tip-Up Seat: Combination of spring and damping provides the lifetime quiet seat return.
Upholstery: 100% polyester fabric, abrasion resistance >50,000 cycles, optional CA117/BS5852 fire certification
Leg & Armrest: Powder-coated steel frame for rust resistance, E1 plywood with solid wood arm caps for stability
Structural Safety: Complies with EN12727:2016 (Level 4) and BIFMA 5.4:2020 international standards
Custom Embroidery Logo
Custom Veneer & Wood Finishes
Writing Tablet
Custom Row & Seat Number
Full Upholstery Option
LED Aisle Lighting
Cup Holder

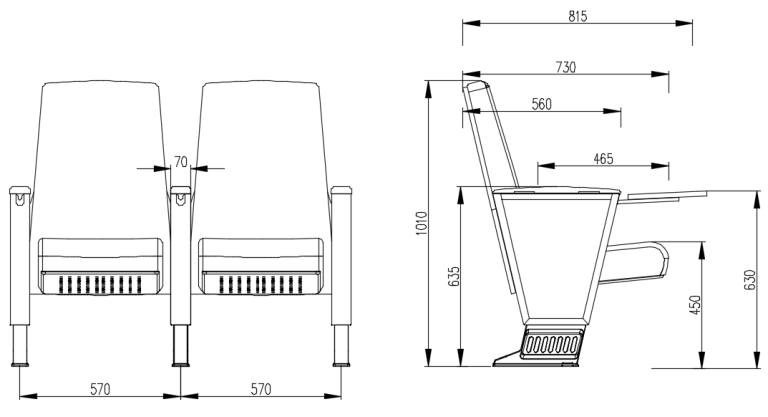

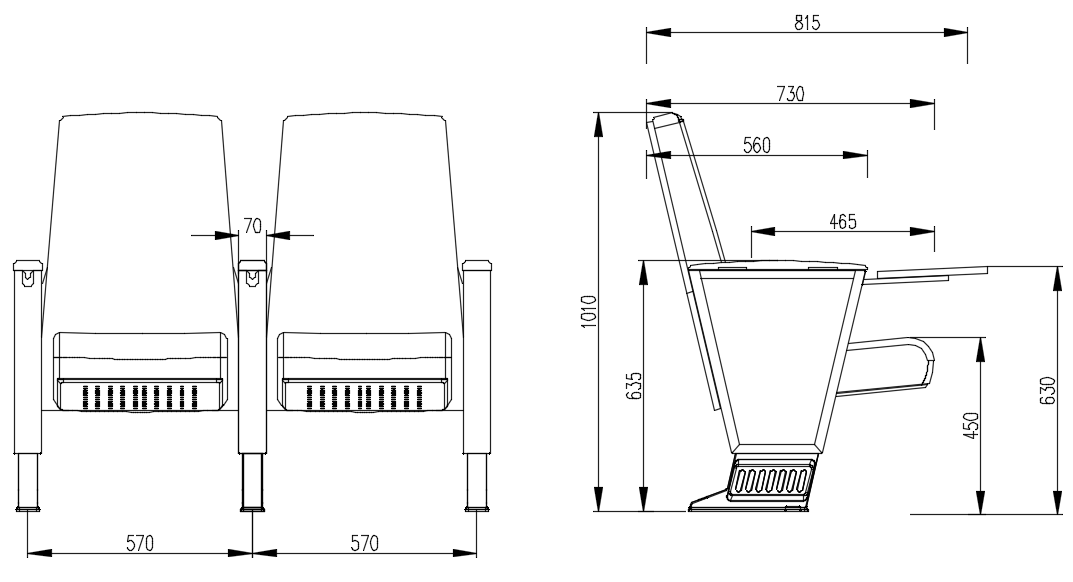

| Description | MM | INCH |
|---|---|---|
| C/C (armrest center to center) | 570 | 22.4 |
| Arm width | 70 | 2.7 |
| Inner seat depth | 465 | 18.3 |
| Overall depth with seat open | 730 | 28.7 |
| Floor-to-seat height | 450 | 17.7 |
| Floor-to-armrest height | 630 | 24.8 |
| Overall back height | 1010 | 39.7 |
