Polished Aluminum Modular Seat UA-6178

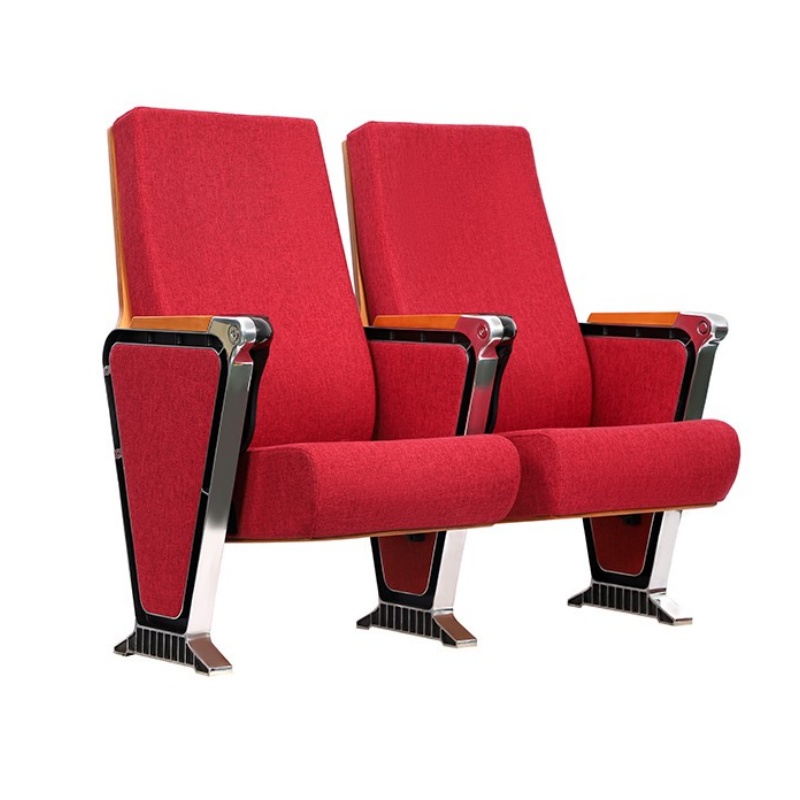

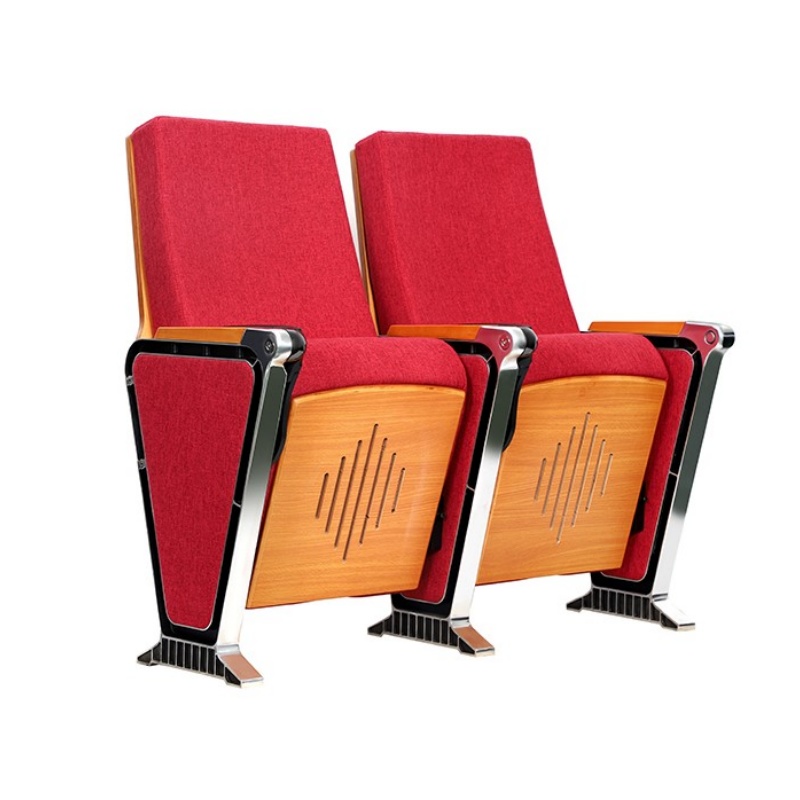

UA-6178 redefines auditorium seating with its streamlined modular design. The polished die-cast aluminum legs with vertical slotted detailing, fabric-covered side panels, and wood-trimmed armrests create a sophisticated contemporary look. Plush ergonomic upholstery ensures lasting comfort, with customizable fabric and wood finishes to elevate your venue’s aesthetic.
Back & Seat Pan: E1-grade eco-friendly plywood (600–650kg/m³ density), B2/CA117 fire-resistant veneer, moisture-proof eco-friendly finish.
Foam: Grade A cold-molded high-resilience foam, maintains shape after long-term use, optional CA117/BS5852 fire certification.

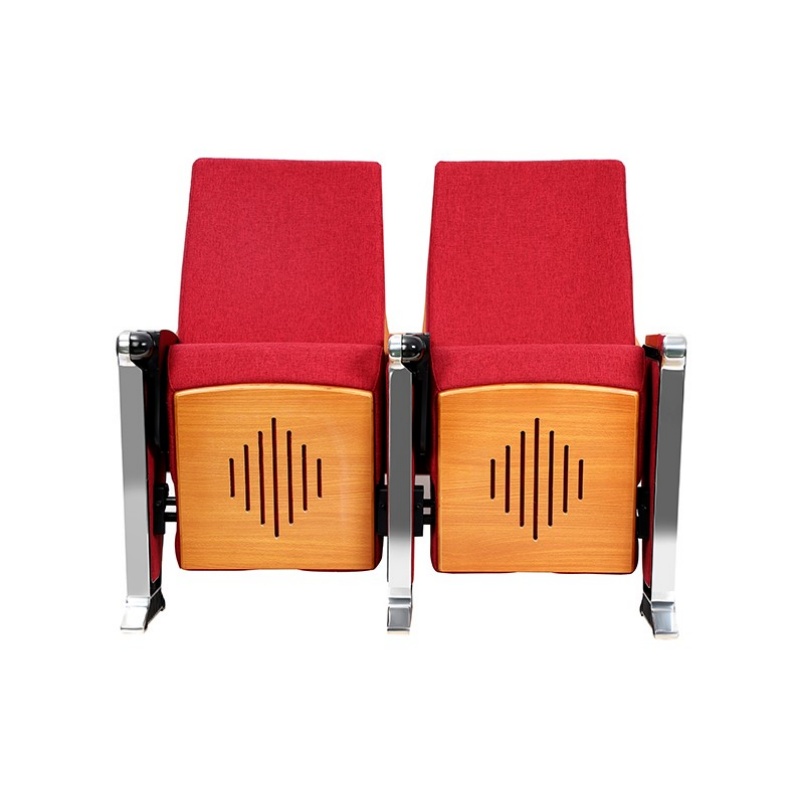

Tip-Up Seat: Combination of spring and damping provides the lifetime quiet seat return.
Upholstery: 100% polyester fabric, abrasion resistance >50,000 cycles, optional CA117/BS5852 fire certification

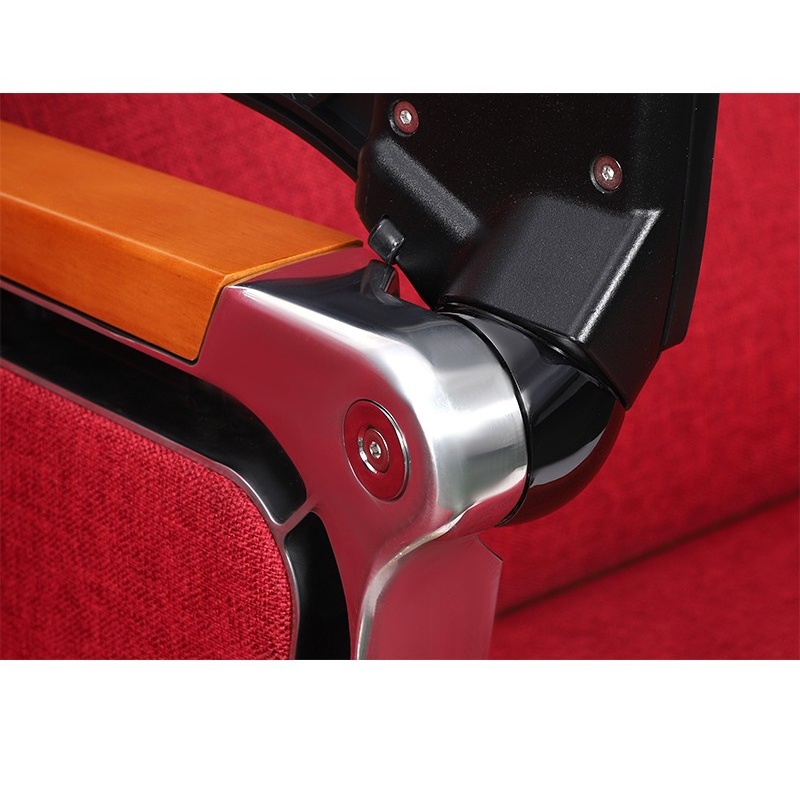

Leg & Armrest: Powder-coated steel frame for rust resistance, E1 plywood with solid wood arm caps for stability
Structural Safety: Complies with EN12727:2016 (Level 4) and BIFMA 5.4:2020 international standards
Custom Embroidery Logo
Custom Veneer & Wood Finishes

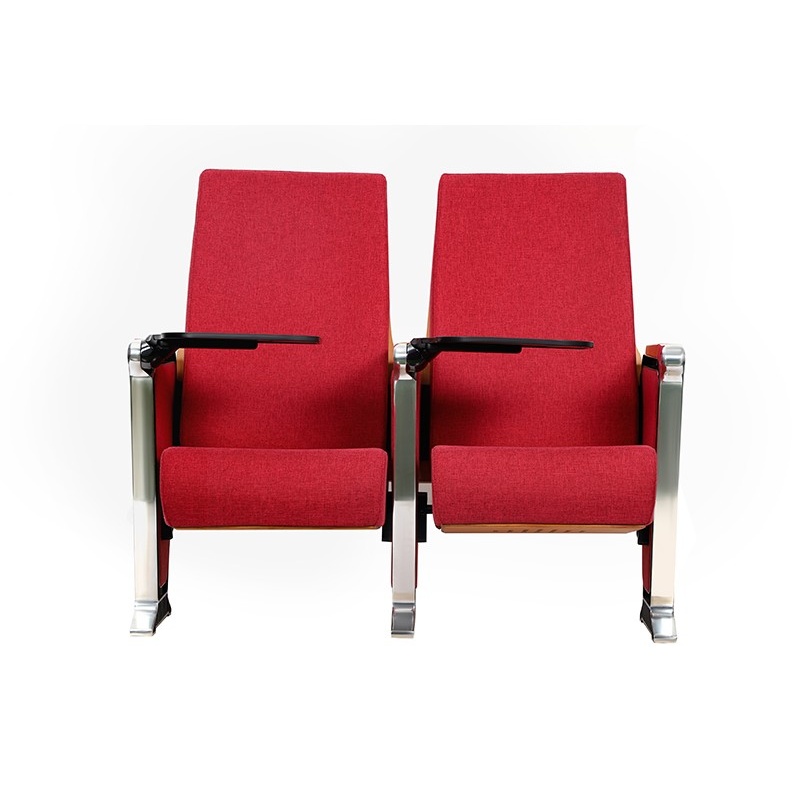

Writing Tablet
Custom Row & Seat Number
Full Upholstery Option
LED Aisle Lighting
Cup Holder

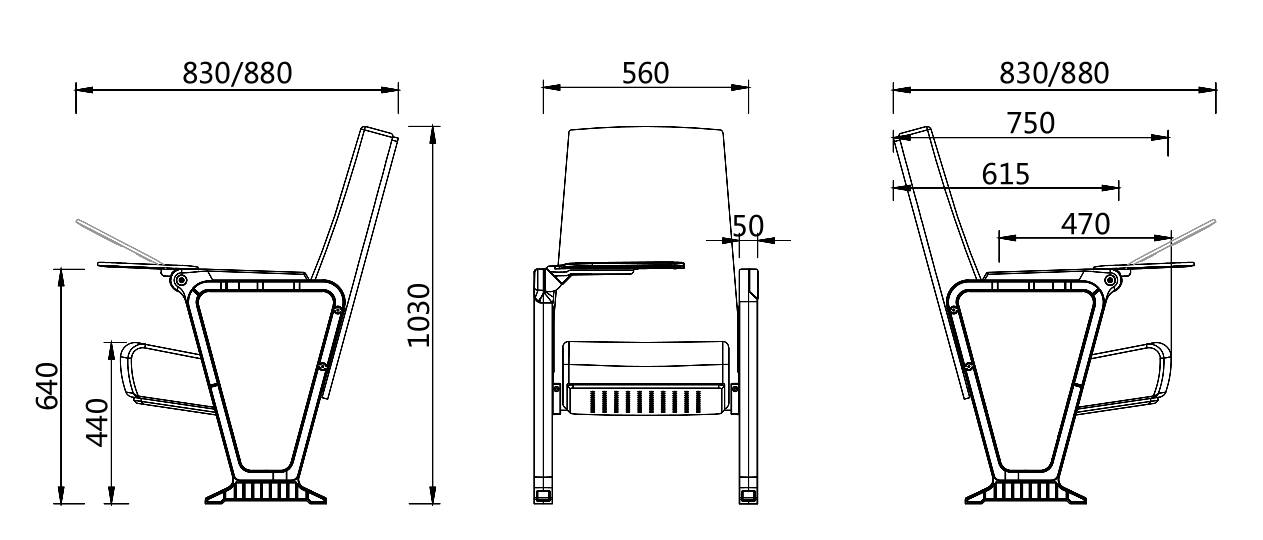

| Description | MM | INCH |
|---|---|---|
| C/C (armrest center to center) | 560 | 22.0 |
| Arm width | 50 | 2.0 |
| Inner seat depth | 470 | 18.5 |
| Overall depth with seat open | 750 | 29.5 |
| Floor-to-seat height | 440 | 17.3 |
| Floor-to-armrest height | 640 | 25.2 |
| Overall back height | 1030 | 40.5 |
