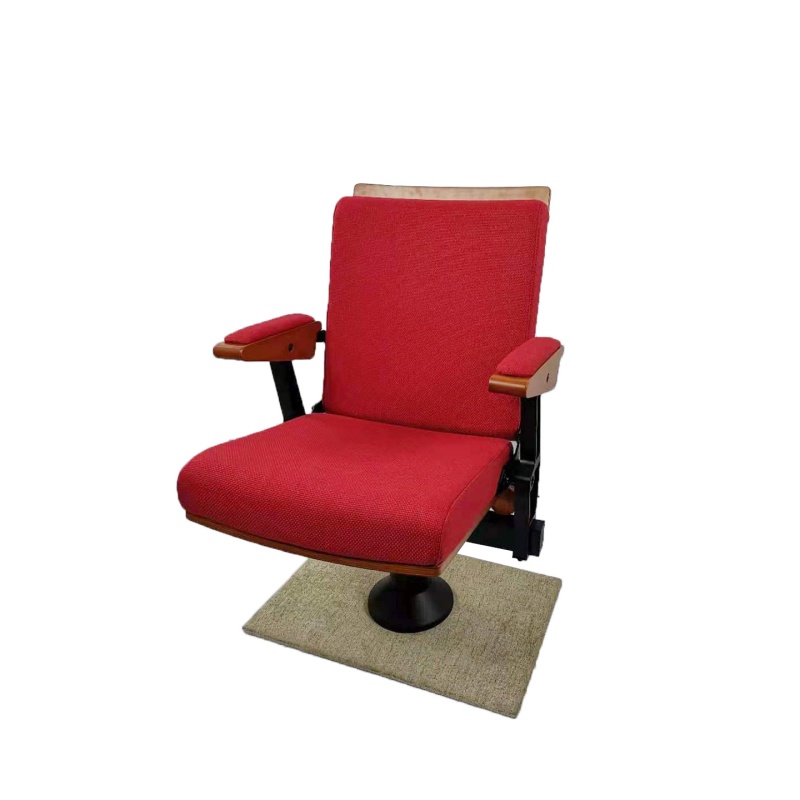

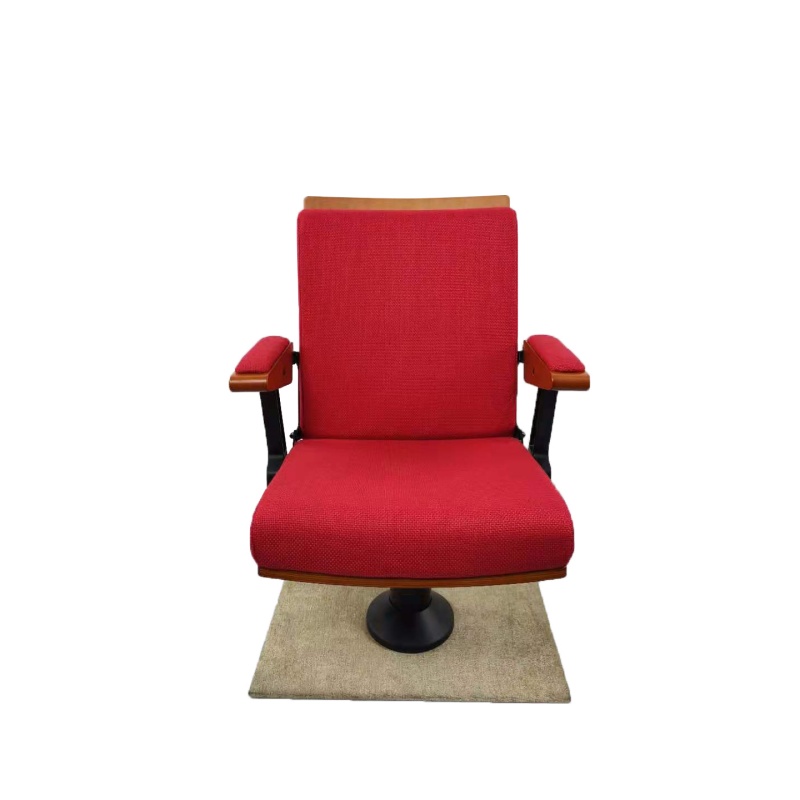

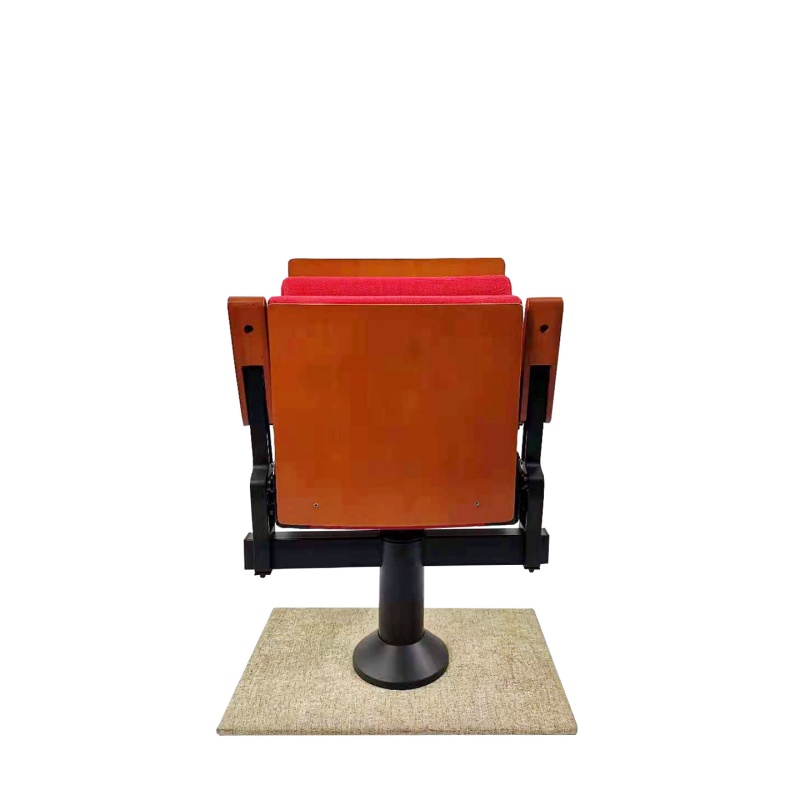

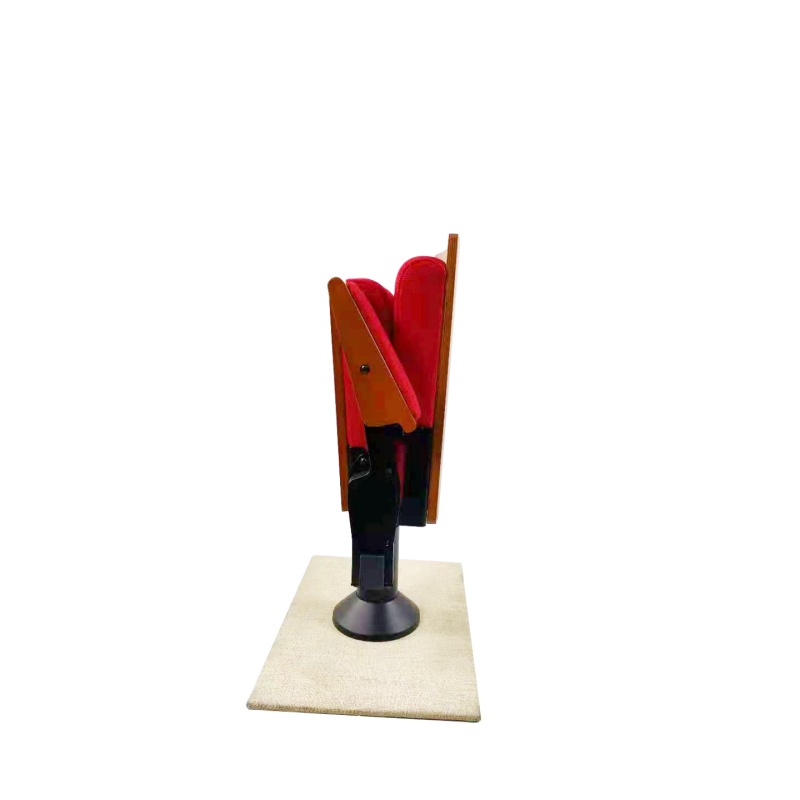

Retractable Seating Compatible Folding Chair UA-430M
UA-430M is a purpose-built foldable chair designed for venues with narrow aisles. It is fully compatible with retractable seating systems — including electric models — and offers a wide selection of shapes, fabrics, and wood finishes to meet your exact design requirements.
Back & Seat Pan: E1-grade eco-friendly plywood (600–650kg/m³ density), B2/CA117 fire-resistant veneer, moisture-proof eco-friendly finish, customizable
Foam: Grade A cold-molded high-resilience foam, maintains shape after long-term use, optional CA117/BS5852 fire certification
Mechanism: Arm spring-return seat-to-back design for smooth, reliable operation
Upholstery: 100% polyester fabric with abrasion resistance exceeding 50,000 rub cycles. Optional fire-resistant fabric compliant with CA117, BS5852, or other international standards.
Leg & Armrest: Powder-coated steel frame for rust resistance, E1 plywood with solid wood arm caps for stability
Structural Safety: Complies with EN12727:2016 (Level 4) and BIFMA 5.4:2020 international standards
Compatibility: Fully compatible with retractable seating systems, including electric models.
Custom Embroidery Logo
Custom Veneer & Wood Finishes
Writing Tablet
Custom Row & Seat Number
Full Upholstery Option
LED Aisle Lighting
Foldable Cup Holder

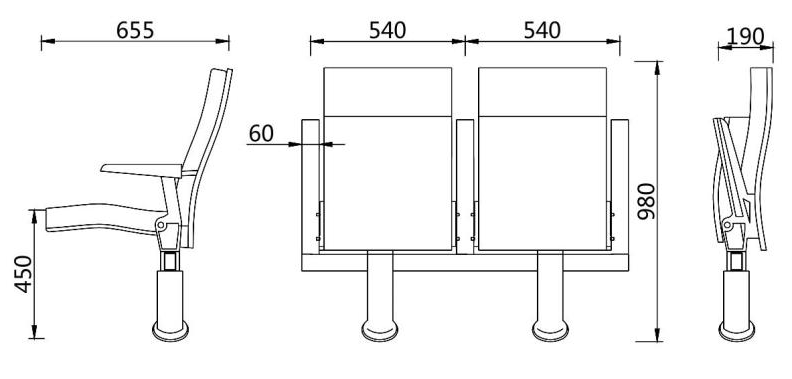

| Description | MM | INCH |
|---|---|---|
| C/C (armrest center to center) | 540 | 21.2 |
| Arm width | 60 | 2.3 |
| Overall depth with seat open | 655 | 25.7 |
| Floor-to-seat height | 450 | 17.7 |
| Overall back height | 980 | 38.5 |
